How to deploy custom scripts in Quality Window

Quality Window supports deploying scripts at different levels depending on where you want the functionality to be available.

Scripts are automatically combined at runtime, allowing you to control scope, reuse logic, and override behavior when needed.

Script levels

Quality Window supports three script levels:

• Application level
• Folder (directory) level
• Global level

Scripts are merged when an application is opened.

If the same function exists in more than one level, the lowest level takes priority:

• Application overrides Folder
• Folder overrides Global

This allows you to define shared behavior globally and override it only where needed.

Script file structure

Scripts are stored as script files and loaded based on their scope.

• Global script is stored as a .QWX6 file and applies to all applications
• Folder script is stored as a .QWX file and applies to all applications in a directory
• Application script is stored as a .QWX file and applies to a single application

All applicable scripts are combined at runtime when an application is opened.

Before you begin

Most scripts are provided as .QWX files.

To deploy a script:

1. Open the .QWX file in a text editor such as Notepad
2. Copy the full contents of the file

You will paste this content into the appropriate script level.

Global script deployment

Use this when the script or macro should be available across all applications.

Typical use:

• Shared macros (menu functions)
• Standard reporting tools
• Company-wide utilities

Steps:

1. Open QW Admin

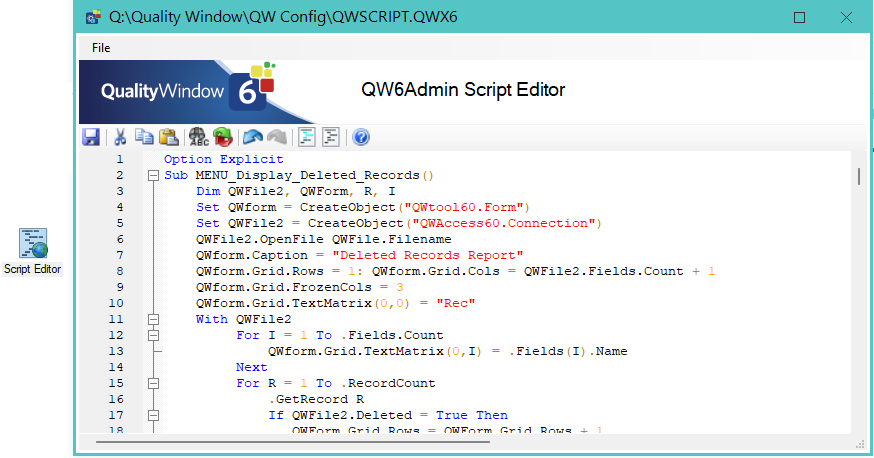

2. Open the Script Editor (this opens the Global Script by default)
3. Paste the script content at the bottom of the existing script
4. Save the script

Restart Quality Window to ensure the script is loaded.

Open any application and test.

Notes:

• Global scripts are always loaded
• Macros defined as MENU_ functions appear in the Macros menu

Folder script deployment

Use this when the script should apply to a group of related applications stored in the same folder.

Typical use:

• Department-level functionality
• Shared logic across a process area
• Common integrations such as Excel templates

Steps:

1. Open QW Admin
2. Open the Script Editor

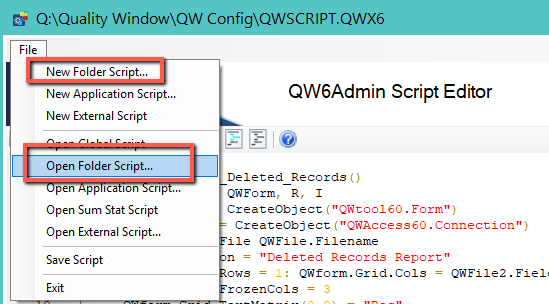

3. Use the File menu to open or create a Folder Script
4. Paste the script content
5. Save

Restart Quality Window if it is already running.

Open an application in that folder and test.

Optional approach:

• Rename the script file to QWScript.QWX
• Place it directly in the target folder

Notes:

• Applies automatically to all applications in that folder
• Combines with Global Script at runtime

Application script deployment

Use this when the script is specific to a single application.

Typical use:

• Application-specific automation
• Custom Excel integrations
• Controlled or validated workflows

Steps:

1. Open QW Admin
2. Open the target application
3. Click Edit Application Script icon
4. Paste the script content into the editor
5. Save

Restart Quality Window if needed.

Open the application and test.

Alternative approach:

• Save the script as:
  <ApplicationName>.QWX
• Place it in the same directory as the application

Notes:

• This level overrides Folder and Global scripts when functions overlap
• Best used when behavior must be tightly controlled

Runtime behavior

When an application is opened, Quality Window loads and combines:

• Global script
• Folder script (if present)
• Application script (if present)

If duplicate functions exist:

• Application overrides Folder
• Folder overrides Global

This allows layered behavior with controlled overrides.

Macro vs user exit scripts

There are two main types of scripts in Quality Window.

Macros

• Defined using Sub MENU_<Name>()
• Appear in the Macros menu
• Triggered manually by the user

Typical use:

• Reports
• Data exports
• Excel integrations

User exits

• Trigger automatically during application events

Common examples:

• QW_Initialize
• QW_BeforeDisplay
• QW_AfterUpdate

These allow automation during Add/Edit operations and other lifecycle events.

Deployment best practices

• Restart Quality Window after making script changes
• Avoid duplicating function names across levels unless intentional
• Use Global scripts for shared utilities
• Use Folder scripts for process-level logic
• Use Application scripts for controlled or application-specific behavior
• Test scripts in a non-production environment before rollout
